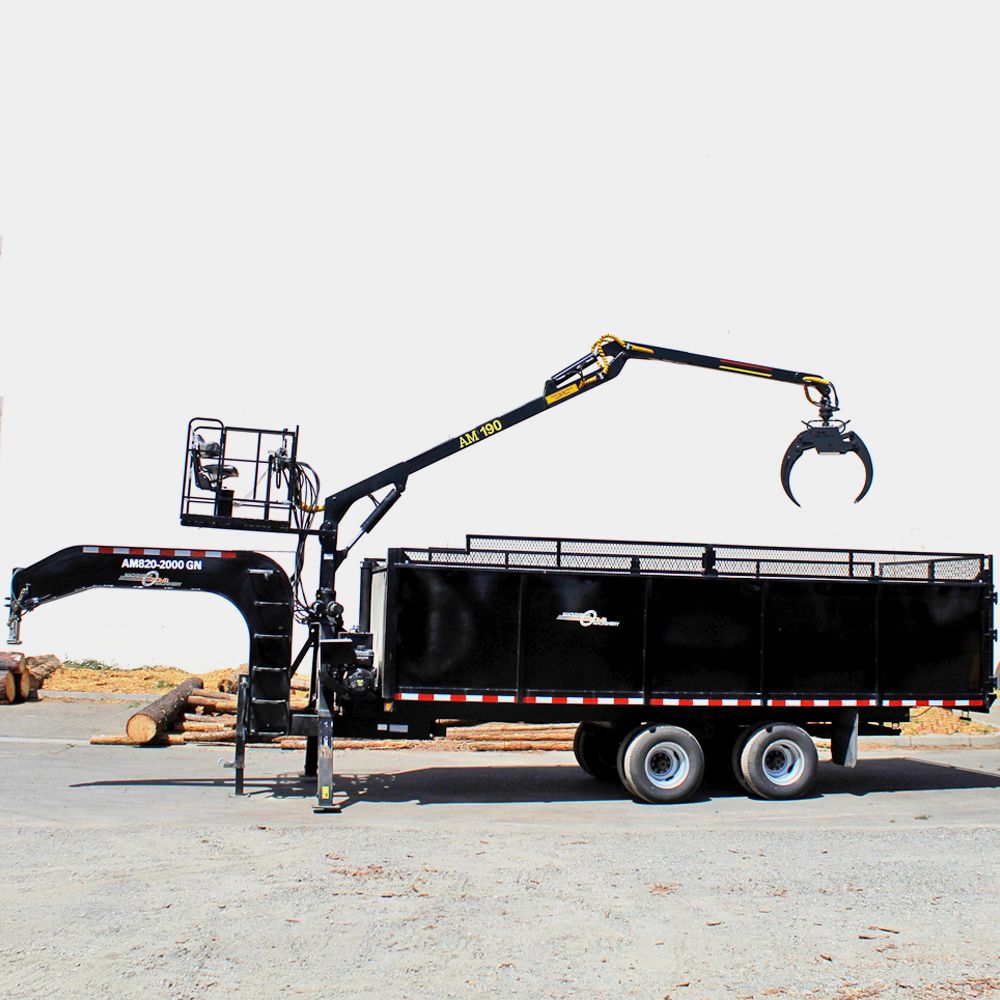

AM Machinery AM820-2000 10 Ton Grapple Dump Trailer - WoodlandPRO Series

The WoodlandPRO AM820-2000 is the big grapple dump: an 8' x 20' dump box with 4' solid steel sides on tandem 10,000 lb axles with dual 16" tires, plus the AM 190 grapple loader (19' reach) and 13 HP Honda electric-start hydraulic unit standard. Approximately 11,000 lbs of payload, self-loaded and self-dumped.

• Complete package: dump trailer + AM 190 grapple loader (19' reach) + 13 HP Honda electric-start hydraulic unit, standard
• 8' x 20' dump box: with 4' solid steel sides; optional side wall heights available
• Tandem 10,000 lb axles: 20,000 lb GVWR with approx. 11,000 lb load capacity on dual 16" tires
• Hydraulic dump: load with the grapple, tip the box at the pile
• Your hookup: gooseneck, ball hitch, or pintle

Build it your way: hookup styles (gooseneck, ball hitch, or pintle), grapple loader lengths from 11' to 23' (21' heavy duty), axle capacities up to 15,000 lb each, and a range of paint colors (black standard). Removable stakes come with winches and straps. Dump box lengths from 12' to 24' are available across the series.

Complete WoodlandPRO packages, in stock at Bailey's. Every WoodlandPRO trailer ships as a working rig: trailer, grapple loader, and 13 HP Honda electric-start hydraulic unit. Built by AM Machinery (AMAPEX) in Canada. Call our Industrial Equipment team at (707) 600-6696 to spec hookup style, loader length, and options.
